China High Precision 1/300000 Accuracy Digital Signal Amplifier for Smart Small Appliances Pressure Transmitter LED Display Type wholesale

High Precision 1/300000 Accuracy Digital Signal Amplifier for Smart Small Appliances Pressure Transmitter LED Display Type

Ask Latest Price

Video Channel

MOQ :100

Price :$5.50/pieces 10-999 pieces

Place of Origin :Hunan China

Brand Name :OEM

Certification :ISO,CE,ROHS,FCC,OIML

Model Number :OEM

Delivery Time :5-8 business days

Payment Terms :T/T,Western Union

Supply Ability :100 pieces per day

warranty :None

customized support :OEM, Software reengineering, ODM, OBM

place of origin :Hunan, China

brand name :JLYCLOUD

accuracy :1G, 1/300000

model number :JLY-DZC-PCB-V4.0

type :Laboratory Balance, Livestock Scale, Bench Scale

display type :LED

material :PCB

supply voltage :5VDC

operation temperature :40℃

Zero adjustment range :-0.3~0.3mv

PCB Physical dimensions :5*3*3cm

Warranty :180days

consumption :10W

A/D resolution ratio :1/200000

Nonlinear :0.01% F.S

Weight limit :300kg

Operating Temperature :0°C to 40°C

Model :TCS Series Platform Scale,ACS Series Price Scale

Material :Stainless Steel,Carbon Steel

Platform Size :400mm x 500mm, 500mm x 600mm, 600mm x 800mm, 800mm x 1000mm,100*100cm,120*120cm,150*150cm

Capacity :60kg, 100kg,150kg,200kg, 300kg, 600kg, 1000kg, 1500kg,3000kg

Communication :RS232, RS485, USB, Ethernet,Bluetooth,wifi,3G,4G,5G,LoraLAN

Storage Temperature :-25°C to 55°C

Display Resolution :1/3000, 1/6000, 1/15000, 1/30000

Certifications :CE, OIML, NTEP, ISO,CE,ROHS,FCC

Functions :Tare, Zero, Accumulation, Counting, Checkweighing, Hold

Accuracy :0.1kg, 0.2kg, 0.5kg, 1kg, 2kg, 5kg

Display :LED/LCD

Power Supply :110-240AC/DC

Units Of Measure :kg, lb, oz, g

Power Source :Rechargeable Battery

Contact Now

Add to Cart

View Product Description

Manufacturer sends digital signals directly, high-precision weighing module, electronic force measuring intelligent household scale, weighing transmitter

High Precision 1/300000 Accuracy Digital Signal Amplifier for Smart Small Appliances Pressure Transmitter LED Display Type

Product Overview

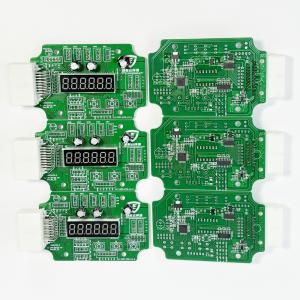

BT359A Digital Weighing Module

The BT359A weighing module is made of highly integrated circuits, which can convert analog signals from weak weighing sensors into standard readable digital signals and send them to other central control units through the TTL uart interface. This is a cost-effective product designed specifically for the needs of smart home appliances and intelligent weighing.

Product Features

1. Turn on/off, weigh and read values;

2. Peeling, zeroing, and calibration;

3. Start up and reset/not reset;

4. Range accuracy setting,

5. Anti static interference and anti signal interference;

6. digital signal;TTL/uart/telecommunications

7. ID can be set;

Specification parameters
Power supply:	3V or 4.5-12V	Communication interface:	UART interface, 3V, TTL
Working temperature:	-20-50 ℃	Protocol:	Add parameter reading function and write unlocking function
Maximum temperature:	90% R.H	Non condensation Non linearity:	0.01% F.S
Power consumption:	about 10, MW (including sensor)	Gain drift:	100ppM/℃
PCB physical size:	length 50 * width 30 * height 3mm	A/D resolution:	1/200000
Zero adjustment range:	-0.3-0.3mV	Maximum measurement accuracy:	1/100000
Input range:	-5mV-5mV	Power supply protection:	Power supply reverse connection protection
A/D conversion speed:	16/s	filtering:	multi-level digital filtering, with seismic interference function;

The weighing problem we can solve

1. Unstable readings, jumps, and inaccurate weighing
2. Creep caused by long-term load and unreliable data
3. Unstable serial port, occasional inability to read data, garbled code, and parameter modification
4. High accuracy, unstable, low accuracy, stable but not sufficient
5. Insufficient applications, functions, and adjustable parameters, unable to meet application requirements
Your trouble is our profession! “
