Features:
| Parameters | BF Series | BF Series | BA Series |
| Backing material | phenolic | Modified phenolic | Polyimide |
| Grid material | constantan | Karma | constantan(Karma) |
| Typical resistance | 120/350/1000 | 350 /1000/2000 | 350 / 1000 |
| Average resistance tolerance | ≤ ±0.1% | ||
| Typical sensitivity | 2.00~2.20 | 1.80~2.20 | 1.86~2.20 |
| Sensitivity coefficient dispersion | ≤ ±0.1% | ||
| Strain limit | 2% | ||
| Fatigue life | ≥ 107(±1000) | ||
| Operating temp. range | -30~+80 | ||
| Temp. self-compensation coefficient | 9, 11,16,23,27 | ||
Strain Gauge Buying Guide
AB Series Strain Gauges
Support customized resistance and size, please contact us directly !
| Item | Model Number | Grid size | Carrier size | Creep |
| dia. mm | dia. mm | |||
| | BF(BA)350-5KA(**)-B* | 4.9 | 5.3 | B0,B8 |
| BF(BA)350-6KA(**)-A-B* | 5.7 | 6 | B0,B8 | |
| BF(BA)350-6KA(**)-B* | 6 | 10.2 | B0,B8 | |
| BF(BA)350-8KA(**)-B* | 7.6 | 8 | B8 | |
| BF(BA)350-9KA(**)-B* | 9.4 | 10 | B0,B8 | |
| BF(BA)350-10KA(**)-B* | 9.6 | 10 | B0 | |
| BF(BA)350-12KA(**)-B* | 11.9 | 12.8 | B0,B8 | |
| BF(BA)350-13KA(**)-B* | 12.6 | 13 | B0,B8 | |
| BF(BA)350-14KA(**)-B* | 12.8 | 14 | B0,B8 | |
| BF(BA)350-15KA(**)-B* | 14.3 | 15 | B0,B8 | |
| BF(BA)350-20KA(**)-B* | 18.8 | 20 | B0,B8 | |
| BF(BA)1000-6KA(**)-B* | 6.7 | 10.2 | B0,B8 | |
| BF(BA)1000-8KA(**)-B* | 7.6 | 8 | B0,B8 | |
| BF(BA)1000-10KA(**)-B* | 9.7 | 10.2 | B8 | |
| BF(BA)1000-13KA(**)-B* | 12.6 | 13.2 | B0,B8 | |
| BF(BA)1000-14KA(**)-B* | 13.4 | 14 | B0,B8 | |
| BF(BA)1000-15KA(**)-B* | 14.6 | 15 | B0,B8 | |
| BF(BA)1000-20KA(**)-B* | 19.2 | 20 | B0,B8 | |
| BF(BA)1500-10KA(**)-B* | 9.6 | 10.2 | B0,B8 | |
| BF(BA)2000-14KA(**)-B* | 13.9 | 14.4 | B0,B8 |
| Sensorcon Product Lists | |||
| Strain Gauge | Load Cell | Torque Sensor | Display |
| Linear Strain gauge-AA | Wireless sensor | Slip ring rotary torque sensor | Platform scale display |
| Half bridge strain gauge-BB,HA,GB,FB | Micro load cell | Contactless rotary torque sensor | Truck scale display |
| Shear/torque strain gauge-AB,HA | Single point load cell | Static torque sensor | Controller |
| Full bridge strain gauge-EB, FG,FD | Button load cell | Meters | Junction box |
| Tee Rosettes strain gauge-CA,BA | Shear beam load cell | Coupling | Big screen display |
| Round type strain gauge | S type load cell | Amplifier | |
| Semi-conductor strain gauge | Column load cell | ||
| Bridge type load cell | |||
Strain Gauge series and semi-conductor strain gauges
Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
1.How to place an order ?
Please provide us more details of what you want, such as:
Operating temperature
resistance in ohm
Grid size
Type of strain gauge (AA or BB...)
To what material do you paste strain gauges on
Do you need wire pre attached ? standard is 30mm insulation with extra cost. Can also add longer ribbon cable, PVC cable .
How many piece do you need ?
What's your application ? what do you need to measure ?
2.Does SNC offer any discount ?
Yes, if you buy large quantity , we have big discount.
3.What terms of payment are available ?
We accept T/T, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange production right after receiving payment.
5.How do you ensure good product quality ?
We have complete quality control system, all products are fully checked by QC before shippment.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some even has 15month to 24 months warranty.

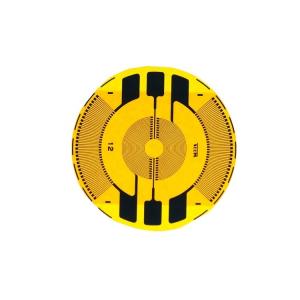

BF350-10KA round type strain gauge for transducer application
BF350-10KA round type strain gauge for transducer application
BF350-10KA round type strain gauge for transducer application
