Description
Model: SC123
Brand: SENSORCON
Capacity: 10,20,30,50 N
Usage: Used for multidirection force measuring systems
Dimension: 40*40*20mm
Features
Torque Sensors/Multidirection force sensors
capacity:10N,...,50N
accuracy:0.2%R.O.
low profile
micro structure
aluminum construction with surface anodized
environment protection class:IP65
Applications
force measuring in a narrow space
torque wrensh and torsion measurement of shaft
multidirection force measuring systems

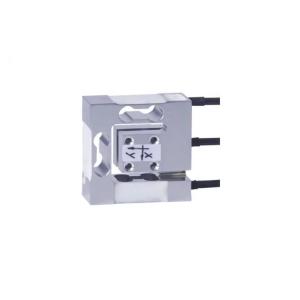

SC123 Multidirection force sensor IS designed to “torque/multidirection force” type of sensor and manufactured from high quality aluminum alloy of aviation standard.
SC123 load cells can be used to measure loads range from 10N to 50N with the measuring accuracy of 0.2% R.O.( R.O.=Rated Output)
SC123 load cells are mainly used for force measuring in a narrow space, torque wrensh and torsion measurement of shaft and multidirection force measuring systems.
Parameter:
| Rated Capacity | 10,20,30,50 N |
| Accuracy | 0.2%R.O |
| Rated Output | 1.0 ± 0.5mv/v |
| Linearity Error | ±0.2%R.O |
| Hysteresis Error | ±0.2%R.O |
| Repeatability Error | ±0.2%R.O |
| Creep | ±0.3%R.O/2min |
| Temp. effect on zero | ±0.5%R.O/10℃ |
| Temp. effect on output | ±0.1%R.O/10℃ |
| Zero balance | ±0.1%R.O |
| Input impedance | 350±10Ω |
| Output impedance | 350±10Ω |
| Insulation resistance | ≥2000MΩ (50VDC) |
| Recommended excitation voltage | 6VDC |
| Excitation voltage Max. | 18VDC |
| Operating temp. range | -10℃~+40℃ |
| Safe overload | 120%F.S |
| Ultimate Overload | 200%F.S |
| Cable length | Φ3mm*2m |
| IP Grade | IP65 |
| Connection | Red: Excitation+, Black: Excitation- Green: Signal +, White: Signal - |
Size: mm
| Sensorcon Product Lists | |||
| Strain Gauge | Load Cell | Torque Sensor | Display |
| Linear Strain gauge-AA | Wireless sensor | Slip ring rotary torque sensor | Platform scale display |
| Half bridge strain gauge-BB,HA,GB,FB | Micro load cell | Contactless rotary torque sensor | Truck scale display |
| Shear/torque strain gauge-AB,HA | Single point load cell | Static torque sensor | Controller |
| Full bridge strain gauge-EB, FG,FD | Button load cell | Meters | Junction box |
| Tee Rosettes strain gauge-CA,BA | Shear beam load cell | Coupling | Big screen display |
| Round type strain gauge | S type load cell | Amplifier | |
| Semi-conductor strain gauge | Column load cell | ||
| Bridge type load cell | |||
Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
