Model: SC642
Rated load: 100, 150, 200, 300, 350, 500KG
Precision: C3
Safe overload:150%
Ultimate overload: 200%
Material: ,Alloy aluminum
Apply to: electronic scale, Platform scale, pricing scale, fore test equipment

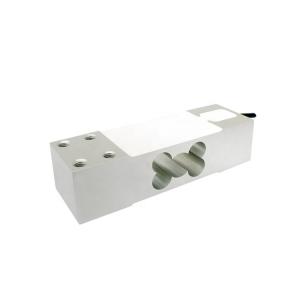

Single Point Aluminium Weighing Load Cell Sensor Price 100Kg 200Kg 300Kg 500Kg
| Comprehensive error: | 0.02%F.S |
| Rated output: | 2±0.1mV/V |
| Non-linearity: | 0.02%F.S |
| Hysteresis: | 0.02%F.S |
| Repeatability: | 0.02%F.S |
| Creep: | 0.02%F.S/10min |
| Zero balance: | ±1%F.S |
| Input resistance: | 405±10Ω |
| Output resistance: | 350±3Ω |
| Insulation resistance: | ≥5000MΩ(100VDC) |
| Excitation voltage: | 9VDC~12VDC |
| Compensated temp. range: | -10℃~+40℃ |
| Use temp. range: | -20℃~+60℃ |
| Temp. effect on zero: | 0.03%F.S/10℃ |
| Temp. effect on span: | 0.02%F.S/10℃ |
| Safe overload: | 120% |
| Ultimate overload: | 150% |
| Defense class: | IP65 |
Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
