Features:
1, Material: Alloy steel with IP66/ IP67 waterproof.
2, Application: hydraulic jack,Truck and railway scales, tank and silo weighing and in heavy duty industrial scales.
3, Optional accessories: Indicator / display, junction box.
Parameters:
| Application | hydraulic jack |
| Model | SC4810 |
| Capacity | 300T |
| rated output | 2.0±0.004mV/V |
| Accuracy class | C2 C3 |
| maximum number of verification intervals | 2000 Nmax 3000 Nmax |
| Minimum loadcell cerification intervals | Emax/5000Vmin Emax7500 Vmin |
| Combined error | ≤±0.030 % RO ≤±0.020 % RO |
| Creep | 0.026 %RO/30min 0.018 %RO/30min |
| Temp. effect on sensitivity | 0.0015 %RO/℃ |
| Temp.effect on zero | 0.0026%RO/℃ 0.0018%RO/℃ |
| Zero balance | ±1.0 %RO |
| Input resistance | 670±10 ohm 1050±10 ohm |
| Output resistance | 605±5 ohm 1000±5 ohm |
| insulation resistance | 5000 MΩ(50V) |
| Recommended excitation voltage | 10-18V |
| Compensated temperature range | -10-+40℃ |
| operating temperature range | -35-+80 ℃ |
| safe overload | 150 %RO |
| Ultimate overload | 300%RO |
| loadcell material | Alloy steel stainless steel |
| Connecting cable | 10-30T Φ6.3x13m 40-300T Φ6.3x20m |
| Method of connecting wire | Red- input+, black- Input-. Green- Output+, White- output - |
Size: mm
Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.

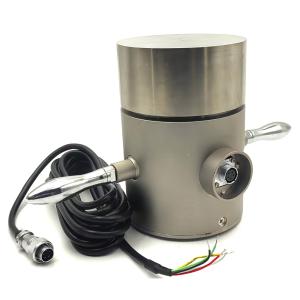

SC4810 Compression Load Cell 3000kn 300tons Load Cell for Test Pile 500Ton 1000Ton Load Cell
